The small-sized CNC milling and engraving machine M-ROBO MS-43 for industrial purposes is designed to perform various milling, engraving, drilling, threading and contour machining on various surfaces of non-ferrous metals and their alloys.

The special feature of this machine is its compact size and ease of use. It has a vertical milling portal-type structure with a movable table. This design allows processing on flat and curved surfaces.

The M-ROBO MS-43 machine provides high precision and processing quality through the use of guides, ball screw gears and high-precision servo motors. At the same time, its protective cabinet fence ensures the safe operation of the operator.

The features of the machine also include its convenience when working in a confined space. The service area is only 2 m2 and is carried out on both sides, which allows you to install the machine near the wall.

This equipment has the ability to perform engraving operations on various materials, including carbon and stainless steels, heat-resistant titanium and aluminum alloys, plastics, textolite, stone and many others.

To ensure operator comfort and ease of operation, various additional functions are built into the machine. There is a window in the machine compartment for maintenance of moving mechanical parts and electric drives of the machine. In the lower part of the machine there is a technological compartment, which can be extended from the front side, in which a chip collection hopper is installed, a spindle cooling system, as well as the possibility of installing a compressor and a vacuum system. At the back of the machine there is an electric cabinet with an IP65 protection degree and a window for maintenance of the electric drive.

The small-sized CNC milling and engraving machine M-ROBO MS-43 with cabinet fencing is a reliable and convenient equipment, ideal for performing serial operations for processing various materials with high accuracy and quality.

•  XYZ working field: 400x300x250 mm;
• Spindle Type: spindle 3.0 kW, rotation speed 24000 rpm, collet type ER20;
• Spindle cooling system: forced liquid cooling, antifreeze cooler, distilled water;
• Desktop Type: steel plate 28x400x300 mm with T-shaped slots 10H8;
• Desktop load: 30 kg;
• Lubrication system of guides and carriages: cassette;
• Ball screw lubrication system: automatic;
• Type of sensors: induction;
• Type of guides: precision rail guides of accuracy class H (±0.012 mm 500 mm);
• Type of transmission along the XYZ axes: precision ball screw pair (ballscrews);
• Type of drives on XYZ axes: AC servo motor;
• XYZ axis positioning accuracy: 0.01mm by 300 mm;
• XYZ axis positioning repeatability: 0.052mm by 300 mm;
• The discreteness of the displacement task (the minimum displacement that can be set in the control program): 0.001 mm;
• Maximum travel speed: 15 m/min;
• CNC system: on the meringue of the PUMOTIX PX1 controller;
• Management Interface: a personal computer running Windows;
• Machine control program: PUMOTIX (Russian);
• Computer interface: USB;
• Supported file formats: G-Code, M-Code (ISO);
• Supply voltage: 380 V, 50 Hz;
• Maximum power consumption: 4.5 kW;
• Overall dimensions of the DShV – 1200x1350x1800 mm;
• Weight – 700 kg.

The scope of delivery

• Milling processing center M-ROBO MS-43;

• Remote control for CNC machine wired with flywheel;

• Collet chuck ISO20–ER20 – 10 pcs.;

• Collet ER20 – 6 pcs.;

• Universal carbide cutters – 10 pcs.;

• A set of clamps for fixing the workpiece;

• Wrenches – 3 pcs.;

• The manual and the operating passport.

• Power: 4.5 kW;
• Supply voltage: 380 V;
• Maximum current: 9.2A;
• Type of cooling: liquid;
• Rotation speed: 8000-24000 rpm;
• Collet chuck: VT30;
• Type of tool shop: carousel;
• Number of collet cartridge holders: 10;
• Maximum tool diameter: 80 mm;
• Maximum tool weight: 2 kg.

The warranty for M-ROBO ENGINEERING machines is 2 years from the date of commissioning.

During this period, the manufacturer guarantees the elimination of all identified or encountered problems during operation at its own expense, unless these problems were caused as a result of erroneous or incorrect actions of the operating personnel and non-compliance with the technical requirements for this type of equipment.

M-ROBO ENGINEERING has an equipped service team, which consists of engineers with extensive experience in servicing CNC metalworking machines. The presence of a service center in Ufa is an essential condition for ensuring prompt response and high-level service, both during the warranty and post-warranty period.

Consultations on the choice of equipment, its accessories, and installation conditions are carried out free of charge. On a contractual basis, we provide the following types of services: delivery, installation supervision, installation, commissioning, commissioning of equipment, training of specialists to work on the machine, preparation of control programs, periodic maintenance of machines in the post-warranty period.

The equipment is manufactured under the registered trademark MROBO.

All models of manufactured machines are declared to comply with the uniform requirements of the technical regulations of the Customs Union.

The equipment is designed and manufactured in accordance with the safety requirements for this type of machinery and equipment.

TU 28.41.22-001-96439670-2023 Milling and metal cutting machines

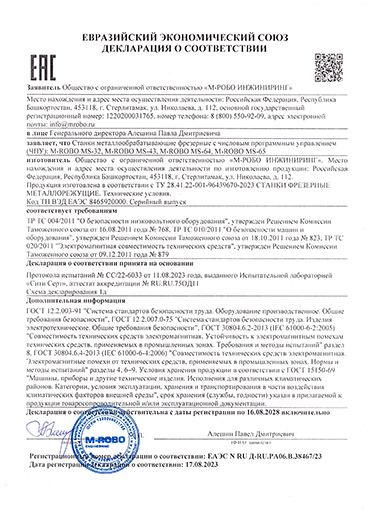

Registration number of the declaration of conformity: UES N RU D-RU.RA06.V.38467/23. Date of registration of the declaration of conformity: 17.08.2023
