Description
General view

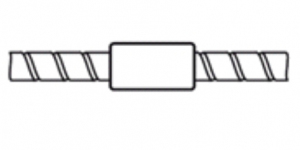

Type of transmission and guide
Section
General view
Type of transmission and guide
Section
The compact M-ROBO linear drives of the LDB series with belt drive have high performance characteristics such as high rigidity, speed, accuracy and repeatability. They can be easily combined and built into multi-axis linear displacement systems with numerical control.
Ball guides with zero backlash are used as guides, which ensures high load capacity and precision movements of large masses at high speed. When equipped with a toothed belt, high torques can be achieved under variable loads with good positioning accuracy, low wear and low noise. The ball-screw transmission is equipped with high torques and load capacity with high accuracy and repeatability of positioning.
The self-supporting aluminum housing is made of a single piece, has a large cross-sectional area. The housing has T-shaped slots for mounting the linear actuator, sensors and switches. An anti-corrosion protective strip with a sealing rubber band and covers prevent dust and other contaminants from entering the working bodies. The movable plate is made of aluminum and has a grid of threaded connection holes. All parts are covered with a protective layer by chemical anodizing.
Operating conditions:
The ambient temperature is 0 degrees C ... 60 degrees C;
Protection class - IP40;
Service life - 7 years;
The number of working cycles is 5 million.;
The frequency of maintenance is 500 thousand cycles.

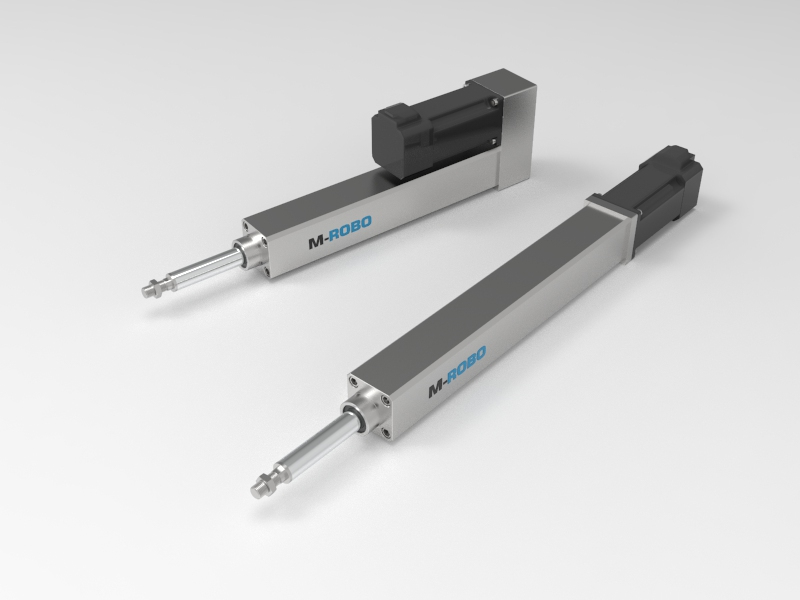

Marking
CED - 40 - 1610 - 200
(1) (2) (3) (4)
(1) Series
CED - Cylindrical electric drive
(2) Size
32, 40, 50, 63, 80, 100
(3) Ballscrew type
CED 32: 12х5, 12х10
CED 40: 16х5, 16х10, 16х16
CED 50: 20х5, 20х10, 20х20, 20х50
CED 63: 25х5, 25х10, 25х25
CED 80: 32х5, 32х10, 32х20, 32х32
CED 100: 40х5, 40х10, 40х20, 40х40
(4) Working stroke (mm)
50...1200 (multiple of 50 mm)
Linear drives LDB-65
Load schedules
Sizes
Technical specifications
Working stroke from 200 mm to 1800 mm (multiple of 100 mm);
The maximum travel speed is 250 mm/sec;
Positioning accuracy - 0.05 mm per 300 mm stroke;
Housing type – D16 plate with T-slots;
Guide type – Hiwin HGR20 precision rail guides, accuracy class H (±0.012 mm by 500 mm);
The lubrication system of the guide and carriage is an automatic lubrication unit refueled;
Transmission type – gear belt;
Drive type – AC servo motor;
The repeatability of positioning is 0.12 mm by 300 mm;
The discreteness of the displacement task (the minimum displacement that can be set in the control program) is 0.001 mm.
The scope of delivery
1. Linear actuator M-ROBO LDB-65;
2. Servo motor;
3. A set of sensors;
4. A set of connecting wires;
5. A set of clamps for fixing;
6. Manual and operating data sheet.
Linear drives LDB-80
Load schedules
Sizes
Technical specifications
Working stroke from 200 mm to 3000 mm (multiple of 100 mm);
The maximum travel speed is 250 mm/sec;
Positioning accuracy - 0.05 mm per 300 mm stroke;
Housing type – D16 plate with T-slots;
Guide type – Hiwin HGR20 precision rail guides, accuracy class H (±0.012 mm by 500 mm);
The lubrication system of the guide and carriage is an automatic lubrication unit refueled;
Transmission type – gear belt;
Drive type – AC servo motor;
The repeatability of positioning is 0.12 mm by 300 mm;
The discreteness of the displacement task (the minimum displacement that can be set in the control program) is 0.001 mm.
The scope of delivery
1. Linear actuator M-ROBO LDB-80;
2. Servo motor;
3. A set of sensors;
4. A set of connecting wires;
5. A set of clamps for fixing;
6. Manual and operating data sheet.
Linear drives LDB-110
Load schedules
Sizes
Technical specifications
Working stroke from 200 mm to 4000 mm (multiple of 100 mm);
The maximum travel speed is 250 mm/sec;
Positioning accuracy - 0.05 mm per 300 mm stroke;
Housing type – D16 plate with T-slots;
Guide type – Hiwin HGR20 precision rail guides, accuracy class H (±0.012 mm by 500 mm);
The lubrication system of the guide and carriage is an automatic lubrication unit refueled;
Transmission type – gear belt;
Drive type – AC servo motor;
The repeatability of positioning is 0.12 mm by 300 mm;
The discreteness of the displacement task (the minimum displacement that can be set in the control program) is 0.001 mm.
The scope of delivery
1. Linear actuator M-ROBO LDB-110;
2. Servo motor;
3. A set of sensors;
4. A set of connecting wires;
5. A set of clamps for fixing;
6. Manual and operating data sheet.
