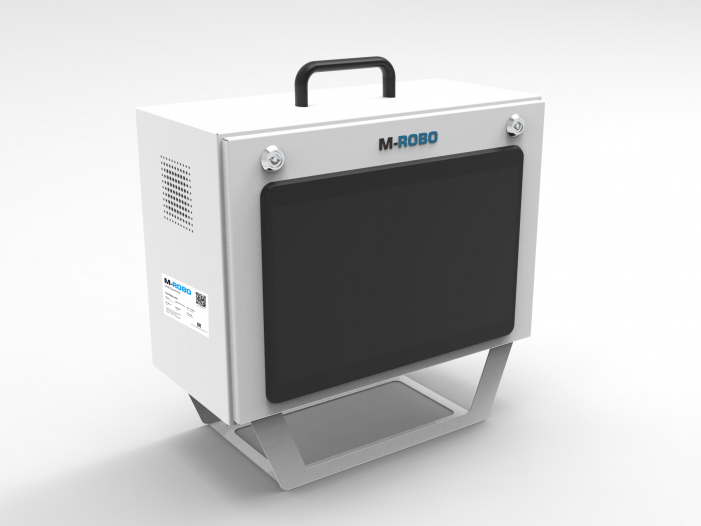

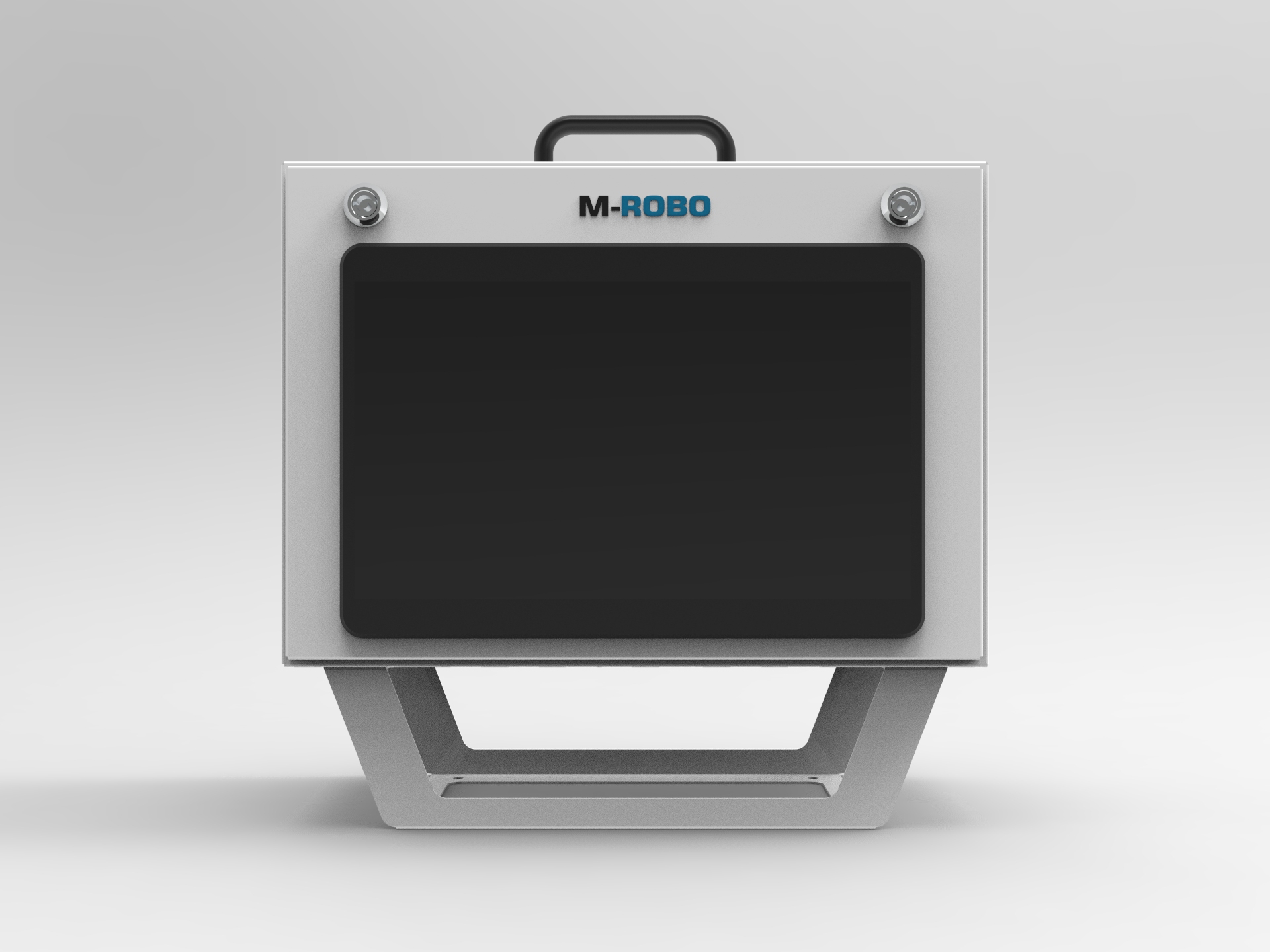

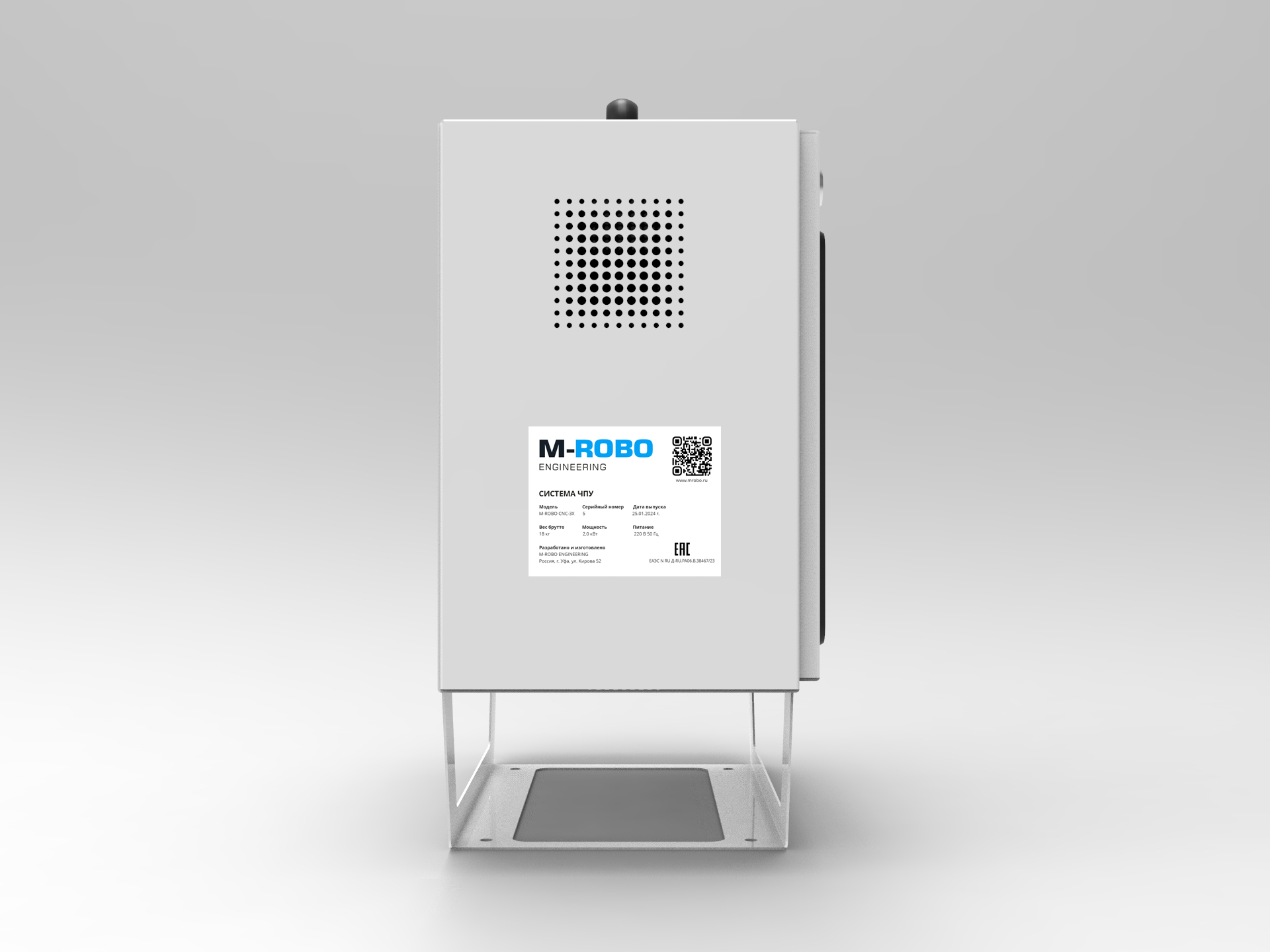

M-ROBO CNC electric drive control systems are designed to control linear and cylindrical electric drives based on servomotors up to 6 axes, have the ability to connect up to 16 sensors and 16 actuators. They are equipped with a programmable logic controller, ports for connecting sensors and actuators, servodrivers, and peripherals.
CNC system CONTROL 2Х
Technical specifications
The number of simultaneously controlled axes is 2;
The power of the X–axis servo driver is 400 W (possible options are 200/750 W);
The power of the Y–axis servo driver is 400 W (possible options are 200/750 W);
Number of digital inputs 12/24 V – 16;
Number of digital outputs 5-30 V – 16;
Number of analog inputs 0-5 V – 2;
The number of power relay outputs is 3;
Communication interface – Ehternet, RS485, CAN;
Supply voltage – 220 V, 50 Hz;
Power consumption – 2.0 kW;
Overall dimensions of the DShV – 453x223x480 mm;
Weight – 16 kg.
The scope of delivery
1. M-ROBO CNC 2X system;
2. A set of connecting cables;
3. Manual and operating data sheet.
CNC system CONTROL 3Х
Technical specifications
The number of simultaneously controlled axes is 3;
The power of the X–axis servo driver is 400 W (possible options are 200/750 W);
The power of the Y–axis servo driver is 400 W (possible options are 200/750 W);
The power of the Z–axis servo driver is 400 W (possible options are 200/750 W);
Number of digital inputs 12/24 V – 16;
Number of digital outputs 5-30 V – 16;
Number of analog inputs 0-5 V – 2;
The number of power relay outputs is 3;
Communication interface – Ehternet, RS485, CAN;
Supply voltage – 220 V, 50 Hz;
Power consumption – 2.0 kW;
Overall dimensions of the DShV – 453x223x480 mm;
Weight – 18 kg.
The scope of delivery
1. M-ROBO CNC 3X system;
2. A set of connecting cables;
3. Manual and operating data sheet.
CNC system CONTROL 4Х
Technical specifications
The number of simultaneously controlled axes is 4;
The power of the X–axis servo driver is 400 W (possible options are 200/750 W);
The power of the Y–axis servo driver is 400 W (possible options are 200/750 W);
The power of the Z–axis servo driver is 400 W (possible options are 200/750 W);
The power of the A–axis servo driver is 400 W (possible options are 200/750 W);
Number of digital inputs 12/24 V – 16;
Number of digital outputs 5-30 V – 16;
Number of analog inputs 0-5 V – 2;
The number of power relay outputs is 3;
Communication interface – Ehternet, RS485, CAN;
Supply voltage – 220 V, 50 Hz;
Power consumption – 2.0 kW;
Overall dimensions of the DShV – 453x223x480 mm;
Weight – 21 kg.
The scope of delivery
1. M-ROBO CNC 4X system;
2. A set of connecting cables;
3. Manual and operating data sheet.
